Independent dual motor drive system

Allows independent of filling and air expelling of Side A and Side B respectively.

Allows independent injections of Side A and Side B respectively.

?

Simultaneous injection function

The dual motor drive system allows simultaneous injection of contrast and saline.

Allows the control of contrast density in the right and left ventricles.

Significantly reduces CT image artifact

Able to observe the right coronary arteries, right atrium and right ventricle in a single study in the same image.

?

Color touch screens

Intuitive?user?interface, clear and concise information display to ensure user operation confidence.

?

Auto Detect Function

Automatic plunger push and pull when snapping syringe on

?

Waterproof Design

Waterproof injector head design to minimize damage from contrast/saline leakage and ensures the safety of clinic operation

?

Safe Operation

Injection can be paused and resumed at any time during the injection.

?

Heat Maintainers

Warms contrast and saline to maintain at ideal temperature, which reducing patient’s adverse effect.

?

Real-time Pressure Curve

Display real-time pressure curve, monitor the pressure changes, lower risk of patients.

?

Connect to other Imaging Equipment

Connect with other imaging equipment for enhanced imaging, use contrast more efficiently and minimize radiation.

Power Supply： 100-240VAC，50/60Hz，200VA

Flow Rate：?0.1-10ml/s

Pressure Limit：?325PSI

Exhaust Rate：?1.0-9.9ml/s

Syringe Volume：?A?Syringe A 1-200ml，B?Syringe B 1-200ml

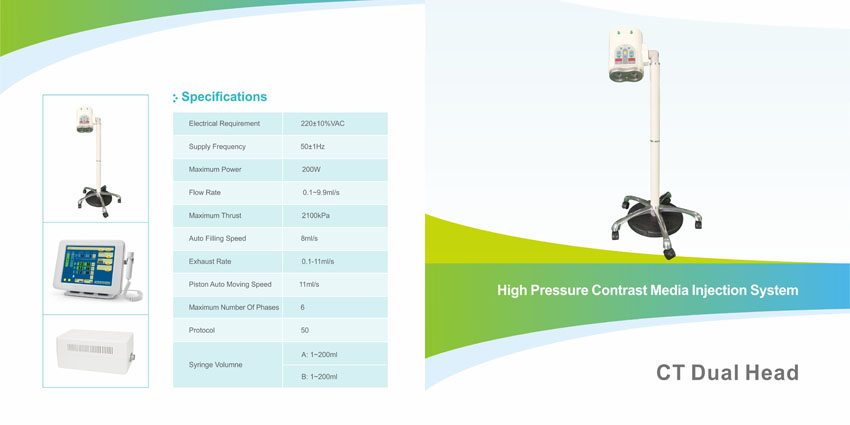

Product brochure
